Product Name：

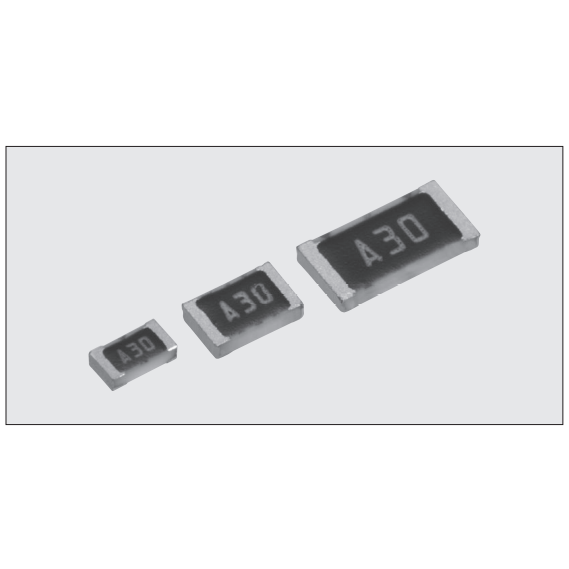

PTC Chip Thermistor
Summary：
・LP73s are thin-film thermal sensors of SMD type. ・LP73s accomodate resistance tolerance ±1%, a wide range of TCR ＋3000×10−6/K〜＋5000×10−6/K with the standard products. ・Suitable for control of temperatures in various industrial equipment. ・Suitable for both flow and reflow soldering. ・Products with lead free termination meet EU-RoHS requirements.
Content：
1.Temperature compensation on overheat prevention for Cameras and Small DC Motors. 2.Temperature compensation for various kinds of Sensor Drive Circuits. 3.Temperature compensation for Telecommunication and Measuring Devices. 4.Temperature compensation for Hybrid ICs.
※2 T.C.R. Mesuring Temperature : ＋25℃/＋65℃ ① Protective coating ② Thermal film ③ Inner electrode ④ Ni plating ⑤ Sn plating ⑥ Ceramic substrate L c c W t d ① ② ③ ④ ⑤ ⑥ ※1 Thermal time constant and dissipation constant are reference values, which are values of elements and vary with connecting or fixing methods. Thermal Sensors EU RoHS
